Turtle graphics

日本語のページ

You can draw turtle graphics using Python's turtle module.

Starting and Connecting to the misc Server

To draw turtle graphics with Tsumicky, you need to start the server.
The startup procedure is described on this page.

Then, connect to the server using the misc server connection block.

Connect to misc server

Initializing the Turtle Graphics Window

Use the "Initialize Turtle" block to specify the size and position of the Turtle Graphics window.

Initialize turtle

Various Drawings

Use the various blocks in the "Turtle" group to draw lines and other objects in the Turtle Graphics window.

For information on how to use each block, see this page.

Ending Drawing

If you don't want to perform any processing after drawing with Turtle Graphics, connect the "End Drawing" block at the end.

End drawing

Without this block, the Turtle Graphics window will freeze after drawing is complete, and you will not be able to move or resize it.

Drawing Update

If you are creating a program that performs processes other than drawing, and those processes take a long time, insert "Drawing Update" blocks throughout the process.

Update drawing

Without this block, the Turtle Graphics window will freeze while performing any process other than drawing, and you will not be able to move or resize it.

Example

This is an example of drawing shapes using Turtle Graphics.
You can download this program from here.

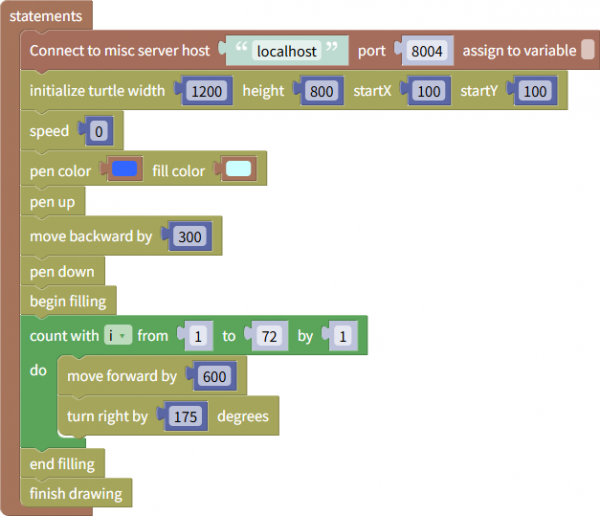

Example program of turtle graphics

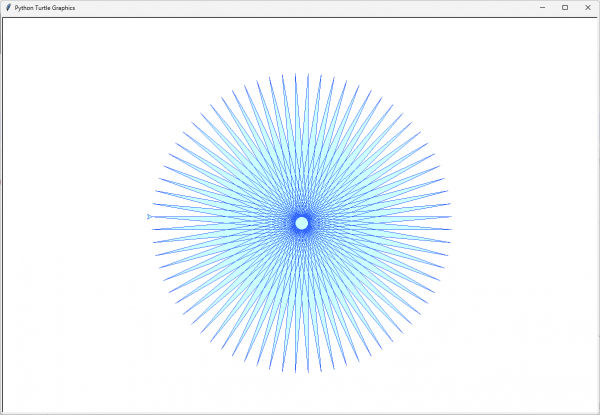

When you run this program, you'll see the following output:

Execution result of the example program
